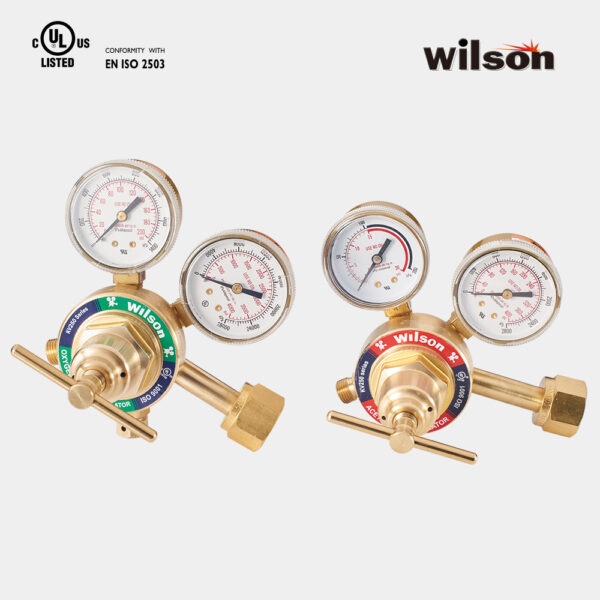

KV250 Gas Pressure Regulator. Medium Duty. UL Listed. EN-ISO 2503.
KV250
‧Gas Pressure Regulator ensures the best flow rate and stable pressure with built-in encapsulated HD valve seat.
‧High pressure regulator with safety relief valve.(external)
‧Drop forged fine brass body and bonnet.
‧Neoprene diaphragm
‧2.1″ gauges
‧Compact body and bonnet for medium industrial and commercial usage.
| Model | Gas | Max. Inlet Pressure | Max. Delivery Pressure | Outlet Flowmeter |
| KV250-15-AC | Acetylene | 350psi | 15psi | N/A |
| KV250-50-LP | Propane | 350psi | 50psi | N/A |
| KV250-100-OX | Oxygen | 3000psi | 100psi | N/A |
| KV250-180-OX | Oxygen | 3000psi | 180psi | N/A |
| KV250-100-* | Argon/CO2/Nitrogen/Air/He/H2 | 3000psi | 100psi | N/A |
| KV250-180-* | Argon/CO2/Nitrogen/Air/He/H2 | 3000psi | 180psi | N/A |
| KV250-60CF-* | Argon/CO2 | 3000psi | N/A | 60SCFH |
| KV250-30LPM-* | Argon/CO2 | 3000psi | N/A | 30LPM |
