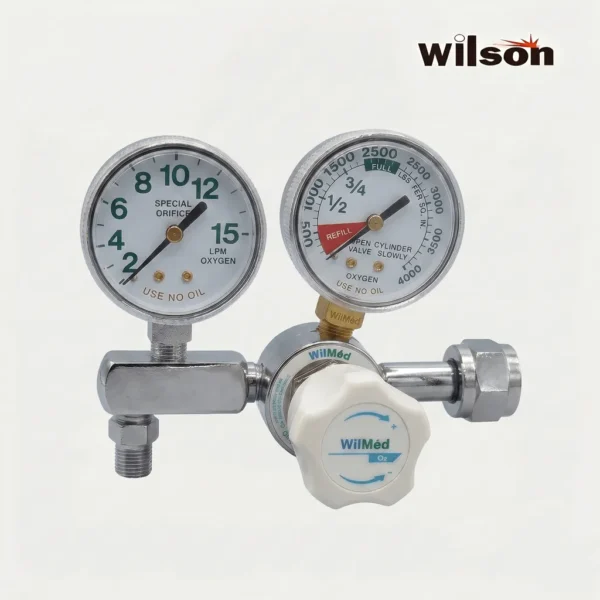

Oxygen Flow Gauge Regulators

  1. Oxygen flow regulators are chrome- plated brass body and with brass high pressure chamber.
  2. Durable neoprene diaphragm.
  3. Internal relief valve protects against over-pressure
  4. Inlet and outlet with sintered filter for additional safety and to extend regulator lifespan
  5. Flow accuracy : 10% indicated value

Specification

Field Medical oxygen with flow gauge
Inlet Pressure Max Pressure 3000 psi
Flow Rate 2 – 15 LPM
Inlet Connection CGA540
Outlet Connection 9/16” UNF
Gauge – Pressure 2 in dimension with 4000 psi
Gauge – Flow 2 in dimension with 2–15 LPM
