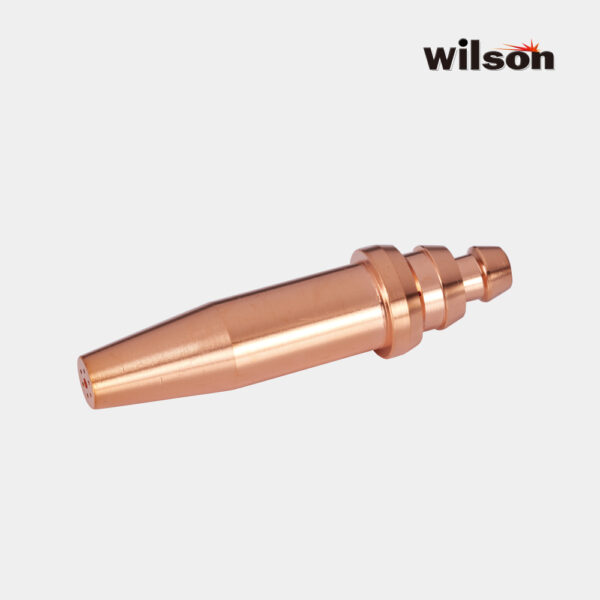

Wilson ANM Cutting Tip.
ANM-*
High quality cutting nozzle.
Acetylene Oxygen cutting.
| Tip Number | Cutting Thickness (mm) | Oxy. Pressure (Bar) | Acet. Pressure (Bar) | Length (mm) |
| ANM-1 (1/32″) | 3-6 | 2.5-3.5 | 0.3 | 75 |
| ANM2-2 (3/64″) | 5-12 | 3.0-4.0 | 0.3 | 75 |
| ANM-3 (1/16″) | 10-75 | 3.5-4.5 | 0.3 | 75 |
| ANM-4 (5/64″) | 70-100 | 4.5-5.0 | 0.5 | 75 |
| ANM-5 (3/32″) | 90-150 | 4.5-5.5 | 0.5 | 75 |
| ANME-6 (7/64″) | 140-200 | 5.0-6.5 | 0.5 | 75 |
| ANM-7 (1/8″) | 190-300 | 6.0-7.5 | 0.8 | 75 |
