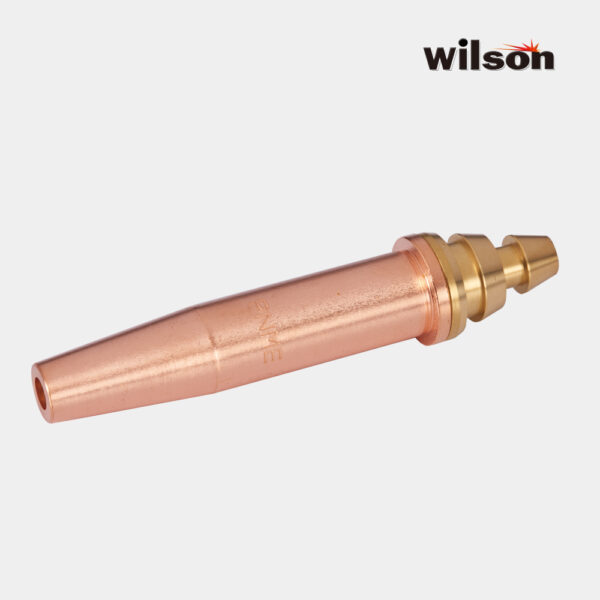

Wilson PNME Cutting Tip.
PNME-*
High quality cutting nozzle.
Propane Oxygen cutting.
| Tip Number | Cutting Thickness (mm) | Oxy. Pressure (Bar) | LPG Pressure (Bar) | Length (mm) |
| PNME-1 (1/32″) | 3-6 | 2.5-3.5 | 0.3 | 92 |
| PNME-2 (3/64″) | 5-12 | 3.0-4.0 | 0.3 | 92 |
| PNME-3 (1/16″) | 10-75 | 3.5-4.5 | 0.3 | 92 |
| PNME-4 (5/64″) | 70-100 | 4.5-5.0 | 0.5 | 92 |
| PNME-5 (3/32″) | 90-150 | 4.5-5.5 | 0.5 | 92 |
| PNME-6 (7/64″) | 140-200 | 5.0-6.5 | 0.5 | 92 |
| PNME-7 (1/8″) | 190-300 | 6.0-7.5 | 0.8 | 92 |
