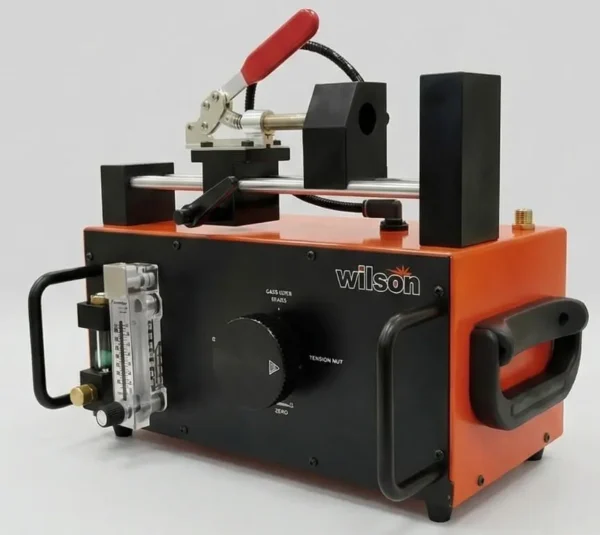

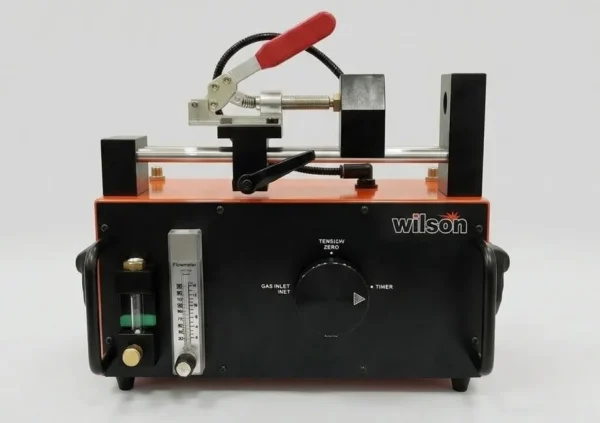

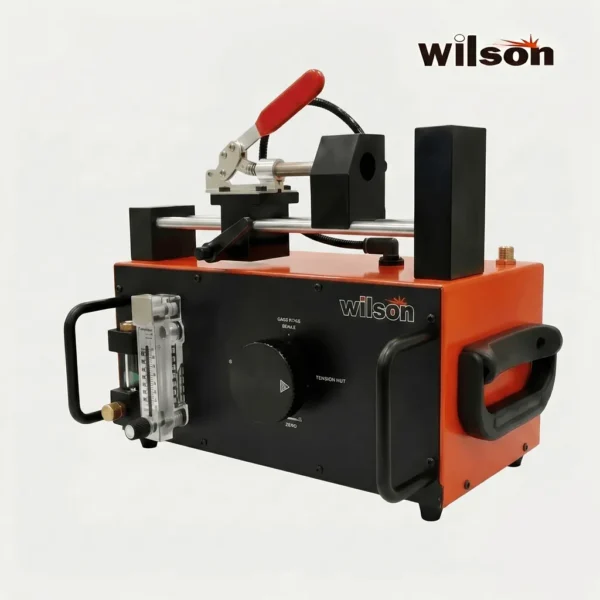

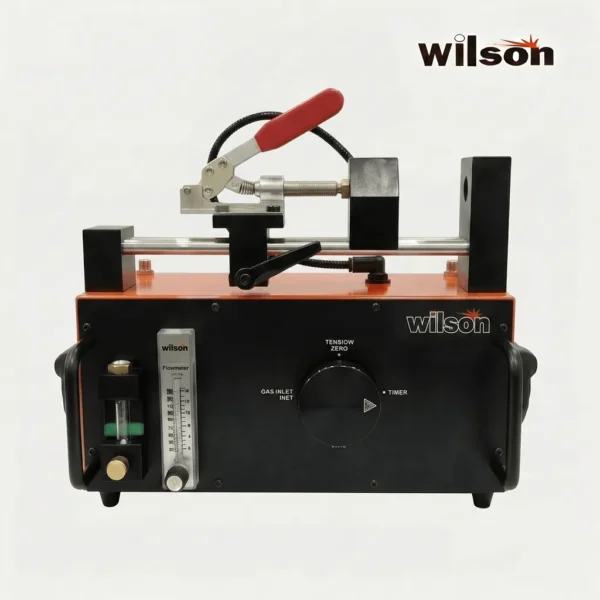

Wilson SafeTest FBA Kit

SAFE, SIMPLE, ACCURATE TESTING – ANYWHERE YOU NEED IT.

• Through Flow Verification

Confirms correct gas flow capacity through the flashback arrestor (minimum flow varies by model).

• Reverse Prevention Test

Ensures the unit effectively blocks reverse gas flow.

Body Leak Test

Checks for leakage from the body under a test pressure of 2 kg/cm².

Advantages

• Reliable, repeatable compliance testing
• Durable frame + retractable handle = portable
• Clear flow & backflow indication = fast results

Compatibility

• FBA’s up to 130mm length / 50mm diameter
• For sizes larger than this, external accessories are available as an option.

Device Components

Stationary Clamp Block; Securing Lever; Regulation Dial; Sliding Clamp Block; Collection Funnel; Control Wheel; Quick-Release Clamps; Backflow Indicator; Gas Inlet Port (G1/4″-19 RH Male); Tension Nut; Bleed Screw; Gas Outlet Port (G1/4″-19 RH Male); Panel Mounted Flowmeter; Protective Frame; Retractable Handle

Adaptor Kit Accessories

• All-in-one kit: adaptors, plugs,
• O-rings, and water bottle included.

For more details about our products, please contact us.
